If you're a homeowner with solar panels on your roof, or maybe you're thinking about adding some, understanding how they're wired is more than just tech talk—it's the key to how well they'll work. In the world of solar setups, how you hook up those panels makes all the difference. But here's the thing: choosing between series and parallel isn't as straightforward as it sounds.
Whether you're decking your RV, building an off-the-grid cabin, or just upgrading your home, the wiring of your solar panels is a game-changer. So, series or parallel? Stick around, and by the end of this article, you'll know exactly what's best for your situation.
Series vs Parallel: Series increases voltage, parallel boosts current.
Efficiency: Series excels in low-light, while parallel mitigates shading impact.
Components: Series requires high-voltage connectors; parallel needs thicker wiring.
Power Output: Series can reduce power loss; parallel ensures consistent output.
Batteries: Charging efficiency varies based on configuration and battery specs.
Decision Factors: Consider energy needs, location, budget, and potential shading.
Solar Panels in Series and How They Work
Imagine a line of dominoes, each one connected end-to-end. That's kinda how solar panels in series work. Each panel is linked in a sequence, with the output of one feeding into the next. It's all about linking the positive end of one panel to the negative end of the next. It's a streamlined setup, but like everything in life, it's got its ups and downs.
Pros and Cons of Wiring in Series
Easier setup: Wiring in series is straightforward. You're essentially connecting one panel to the next in a linear fashion.
Optimal output during specific times: When the sun's shining bright and there's no shade in sight, series setups can be a powerhouse. They can even accept up to 100 Volts input, making energy transfer over long distances a breeze.
Cost-effective wiring: You don't need thick cables. In fact, with four 100 Watt panels in series, you can run it over 100 feet using just a thin 14-gauge wire.
Impact of shading on one panel: Here's the big caveat – if one panel gets shaded, it can throw a wrench in the entire system's output.
Dependency on every panel in the string: Just like those dominoes, if one falls (or in this case, fails), it can affect the whole line.
The world of solar is expansive, and while series setups bring a lot to the table, they're not the only game in town. Thinking about going the series route? Dig a bit further and grab a no-cost solar estimate from our experienced crew today!
Solar Panels in Parallel and How They Work
Ever taken a peek inside a bustling city subway system? Trains running side by side, each on its own track, yet all heading in the same direction. That's a bit like how parallel connections for solar panels work. Instead of one following the other like in a series, each panel operates on its own track, so to speak. They all contribute power, but they do it independently.
Pros and Cons of Wiring in Parallel
Optimal performance even in shaded conditions: Here's the kicker – even if one panel's catching some shade, the others keep chugging along, doing their sunny thing.
Independent panel operation: Just like those subway trains, each panel does its thing, unaffected by its neighbors. If one's having a bad day (or a cloudy one), the others aren't dragged down with it.

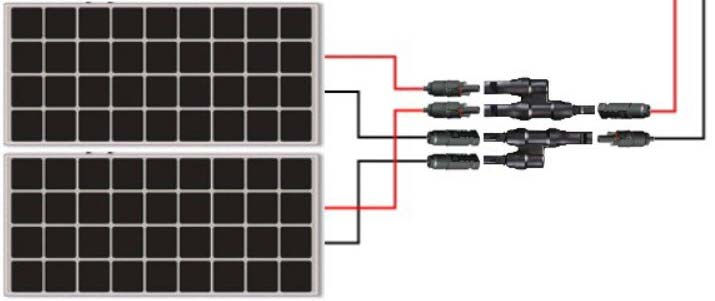

Requirement of additional equipment: To keep everything running smoothly, you might need some extra gear, like branch connectors1.
Thicker, more expensive wiring: On the flip side, parallel setups can demand heftier wiring to handle the high amperage, especially if those panels are a good distance apart.
Series vs Parallel Solar Panels: The Difference
Voltage and Current
When solar panels are wired in series, the voltage of each panel accumulates, resulting in a higher overall voltage. However, the current (measured in amperes) remains consistent across the panels. In contrast, with parallel wiring, the voltage remains constant, but the current from each panel is additive, leading to a higher overall current.
Now, if you're gunning for the highest voltage, series is your go-to. It's like turbocharging your solar system, especially when you're looking to maximize voltage. But... and here's the big caveat... parallel connections shine in places where shadows play spoilsport—like rooftops or near towering structures. Why? Because even if one panel's under the shade, the others keep the energy flowing, ensuring a steady power output.
Ever thought about the connectors? Series setups often demand connectors that can handle the voltage surge. But parallel? They're more laid-back, typically sticking to standard connectors. So, when you're piecing together your solar puzzle, ensure those connectors are up to the task.
List of Components
From combiner boxes to fuses and breakers, both series and parallel setups have their shopping lists. It's not just about plugging in panels; it's about ensuring every piece works in harmony, safeguarding your system and optimizing its performance.
Tapping into the potential of solar to charge batteries? Your setup choice can make or break the efficiency. While both configurations have their merits, it's essential to align with your battery's specs and the manufacturer's recommendations.
Way of Wiring
In series, it's a daisy-chain dance, with each panel linked to its neighbor. Parallel? Think of it as a communal gathering, where every panel's terminals connect side by side. Your choice hinges on factors like space, ease of installation, and, of course, system efficiency.
While both configurations have their perks, it's all about what suits your needs. Considering a leap into solar? Dig in and get a complimentary solar estimate from our top-notch pros today!
Series vs. Parallel Solar Panels: Which to Choose?
Choosing between series and parallel configurations is not just about picking a path; it's about understanding the journey ahead.
Your Energy Needs:
First and foremost, consider how much energy you need. Are you powering a small RV or an entire home? Your energy consumption will guide your choice.
Geographical Location and Sunlight Exposure:
If you're soaking up the sun in sunny California, your needs might differ from someone in often-cloudy Seattle. The amount of direct sunlight your panels can get plays a pivotal role.
Let's face it; we all have budgets. While both configurations have their cost implications, it's essential to strike a balance between efficiency and affordability.
In a series setup, think of your solar panels as buddies holding hands in a line, each passing energy to the next. It boosts the voltage, making it a champ in low-light conditions. But, on the flip side, if one panel takes a break (gets shaded), the whole line feels it.
Parallel configurations, however, are like team members working side by side. If one faces a hiccup, the others chug along just fine. But, bridging the gap between old and new, if your panels aren't identical twins, the stronger one might strain, trying to pick up the slack.
The Bottom Line:
If your panels bask in uninterrupted sunlight, series might be your best bet. But if shadows creep in occasionally, parallel configurations could save the day. And sometimes, it's the nitty-gritty of your electrical setup that makes the call. So, what's the verdict? It's not just a trend; it's a movement towards understanding your energy needs, geographical challenges, and budget. Still undecided? As we step into a new era of renewable energy, allow our experienced pros to guide you.
Why would I choose series over parallel (or vice versa)?
Choosing series over parallel often hinges on voltage needs and shading conditions. Series boosts voltage, but one shaded panel affects the entire string. Parallel, on the other hand, increases current and ensures individual panel performance isn't hampered by others.
What's the lifespan of solar panels in series vs. parallel?
The lifespan of solar panels isn't determined by their configuration (series or parallel). Typically, solar panels last 25-30 years, with efficiency decreasing slightly over time. Proper maintenance is key to longevity.
Can I switch from series to parallel after installation?
Yes, you can switch configurations post-installation, but it requires rewiring and possibly additional components. It's advisable to consult with a solar professional before making such changes.
